Solution Features

Schottky diode-free design

Ultra-high conversion efficiency, up to 10% higher than conventional solutions

Minimal external components, facilitating PCB design for small-size requirements

Non-polar output, no need for anti-reverse connection diodes or rectifier bridges

Patented over-temperature protection function with high reliability

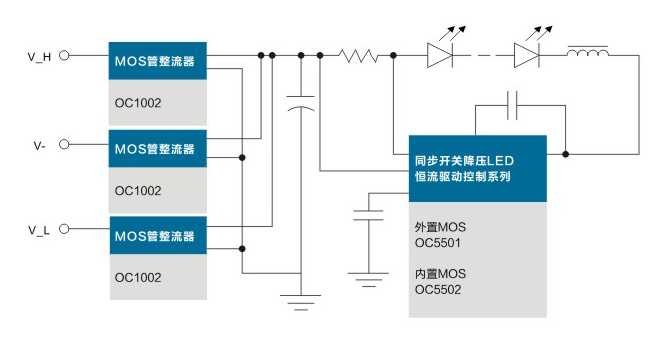

Schematic Diagram
