Solution Features

Designed based on linear step-down constant current driver series:

Support PWM dimming

Built-in current reduction type over-temperature protection function

Simple peripheral circuit

Can directly pass certification without adding external components

Designed based on multi-function switching step-down constant current driver series:

Built-in current reduction type over-temperature protection function

Built-in 3-level dimming: 100%-25%-Strobe (533×)

Built-in 5-level dimming: 100%-50%-25%-Strobe-SOS (535X)

Built-in MCU allows users to set dimming schemes according to customer requirements (5000A)

Scalable current up to more than 5A

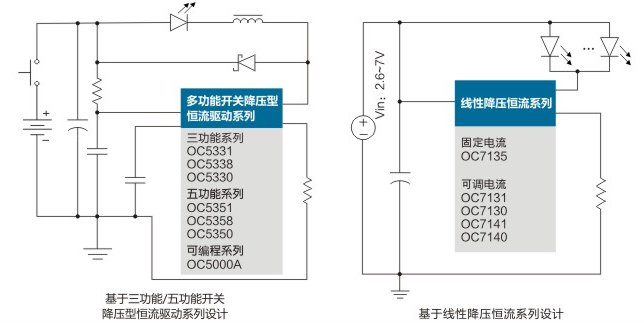

Schematic Diagram
