Solution Features

Wide input voltage range: 5.5V-30V

High efficiency: up to 95%

Output current: 2.5A

Built-in frequency compensation

Built-in soft start

Built-in over-temperature protection

Built-in current limiting function

Fixed operating frequency, which can be set via external resistors

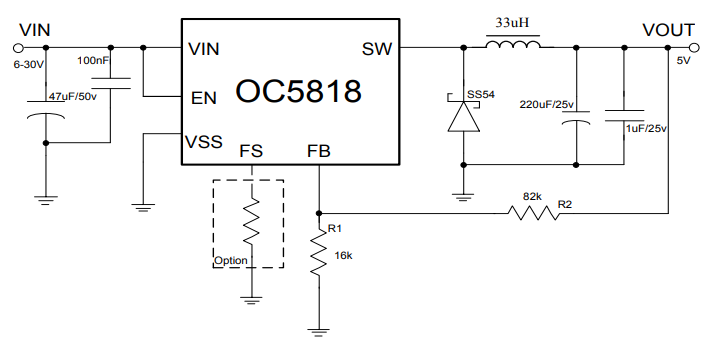

Schematic Diagram
